ClearBOX

ClearBOX adalah perangkat keras (hardware) yang dirancang khusus untuk mengoperasikan ClearOS. Dengan perangkat yang sudah teruji kehandalan, maka ClearBOX adalah jaminan sistem ClearOS anda berjalan dengan lancar dan stabil.

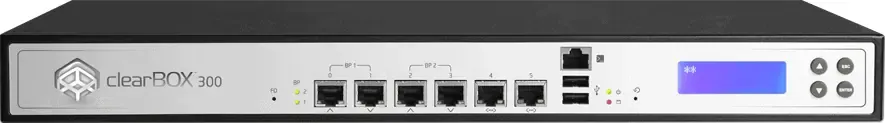

ClearBOX 300



ClearBOX 300



Spesification

ClearBOX 314

ClearBOX 334

ClearBOX 354

Form Factor 1U 1U 1U
Number of Processor 1 1 1
Processor Intel® Core i3-4350T Processor (4M Cache, 3.10GHz) Intel® Core i5-4570S Processor (6M Cache, 3.60GHz) Intel® Core i7-4790S Processor (8M Cache, 4.00GHz)
Memory 2GB (DDR3 DIMM, 2 slots) 8GB (DDR3 DIMM, 2 slots) 16GB (DDR3 DIMM, 2 slots)
Local Storage 1 x 500GB 3.5″ SATA Hard Disk 1 x 3000GB 3.5″ SATA Hard Disk 2 x 750GB 2.5″ SATA Hard Disk
RAID Supports Software RAID 1 Supports Software RAID 1 Supports Software RAID 1
Network Ports 6 GbE ports (dual hardware bypass segments) 6 GbE ports (dual hardware bypass segments) 6 GbE ports (dual hardware bypass segments)
Power Supply 1 x 250W 80Plus ATX

Operating Environment: Temp: 0 to 40°C (32 to 104°F) 20 to 80%RH

Storage Environment: Temp: -10 to 70°C (14 to 158°F) 10 to 90%RH @ 55°C



1 x 250W 80Plus ATX

Operating Environment: Temp: 0 to 40°C (32 to 104°F) 20 to 80%RH

Storage Environment: Temp: -10 to 70°C (14 to 158°F) 10 to 90%RH @ 55°C



1 x 250W 80Plus ATX

Operating Environment: Temp: 0 to 40°C (32 to 104°F) 20 to 80%RH

Storage Environment: Temp: -10 to 70°C (14 to 158°F) 10 to 90%RH @ 55°C



Operating System ClearOS 7 Business Silver ClearOS 7 Business Silver ClearOS 7 Business Silver

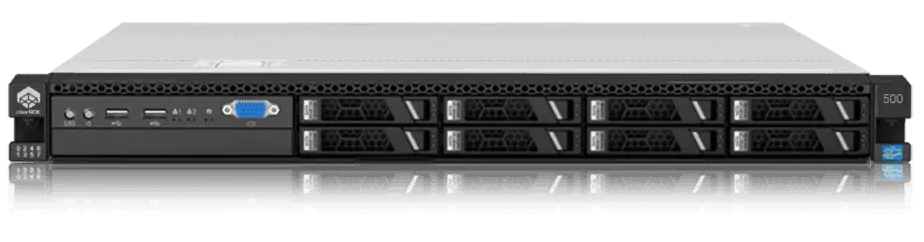

ClearBOX 500

ClearBOX 500

Spesification

ClearBOX 511

ClearBOX 531

ClearBOX 551

Form Factor

1U

1U

1U

Number of Processor

1

2

2

Processor
  • Intel® Xeon E5-2620 v3 2.40GHz 6c
  • Intel® Xeon E5-2630 v3 1.80GHz 8c
  • Intel® Xeon E5-2670 v3 2.30GHz 12c
  • Intel® Xeon E5-2620 v3 2.40GHz 6c
  • Intel® Xeon E5-2630 v3 1.80GHz 8c
  • Intel® Xeon E5-2670 v3 2.30GHz 12c
  • Intel® Xeon E5-2620 v3 2.40GHz 6c
  • Intel® Xeon E5-2630 v3 1.80GHz 8c
  • Intel® Xeon E5-2670 v3 2.30GHz 12c
Memory
  • 16GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 32GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 64GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 32GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 64GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 128GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 32GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 64GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 128GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
Local Storage
  • 3 x 2000GB SATA Hard Disk (RAID 0/1/5)
  • 3 x 3000GB SATA Hard Disk (RAID 0/1/5)
  • 3 x 4000GB SATA Hard Disk (RAID 0/1/5)
  • 5 x 2000GB SATA Hard Disk (RAID 0/1/5/6/10)
  • 5 x 3000GB SATA Hard Disk (RAID 0/1/5/6/10)
  • 5 x 4000GB SATA Hard Disk (RAID 0/1/5/6/10)
  • 12 x 2000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 12 x 3000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 12 x 4000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 6000GB SATA Hard Disk
  • 3 x 480GB SATA Solid State Disk (RAID 0/1/5)
  • 3 x 960GB SATA Solid State Disk (RAID 0/1/5)
  • 5 x 480GB SATA Solid State Disk (RAID 0/1/5/6/10)
  • 5 x 960GB SATA Solid State Disk (RAID 0/1/5/6/10)
  • 8 x 480GB SATA Solid State Disk (RAID 0/1/5/6/10/50)
  • 8 x 960GB SATA Solid State Disk (RAID 0/1/5/6/10/50)
  • 3 x 480GB SATA Solid State Disk (RAID 0/1/5)
  • 3 x 960GB SATA Solid State Disk (RAID 0/1/5)
  • 5 x 480GB SATA Solid State Disk (RAID 0/1/5/6/10)
  • 5 x 960GB SATA Solid State Disk (RAID 0/1/5/6/10)
  • 8 x 480GB SATA Solid State Disk (RAID 0/1/5/6/10/50)
  • 8 x 960GB SATA Solid State Disk (RAID 0/1/5/6/10/50)
RAID Supports RAID 0, 1, 10, 5, 50, 6, and 60 Supports RAID 0, 1, 10, 5, 50, 6, and 60 Supports RAID 0, 1, 10, 5, 50, 6, and 60
Network Ports 4 GbE ports (10GbE optional upon request) 4 GbE ports (10GbE optional upon request) 4 GbE ports (10GbE optional upon request)
Power Supply 1 x 460w Gold Power Supply (dual optional)



110 V to 220 V AC

240 V to 380 V DC

-48 V DC

5°C to 45°C (41°F to 113°F)

Note: The ClearBOX 500 servers operating at 40°C do not support SSDs, and the fault of one fan may affect CPU performance

2 x 460w Gold Power Supply



110 V to 220 V AC

240 V to 380 V DC

-48 V DC

5°C to 45°C (41°F to 113°F)

Note: The ClearBOX 500 servers operating at 40°C do not support SSDs, and the fault of one fan may affect CPU performance

2 x 460w Gold Power Supply



110 V to 220 V AC

240 V to 380 V DC

-48 V DC

5°C to 45°C (41°F to 113°F)

Note: The ClearBOX 500 servers operating at 40°C do not support SSDs, and the fault of one fan may affect CPU performance

Operating System ClearOS 7 Business Silver ClearOS 7 Business Silver ClearOS 7 Business Silver





ClearBOX 700



ClearBOX 700

Spesification

ClearBOX 711

ClearBOX 731

ClearBOX 751

Form Factor

2U

2U

2U

Number of Processor

1

2

1/2

Processor
  • Intel® Xeon E5-2620 v3 2.40GHz 6c
  • Intel® Xeon E5-2630 v3 1.80GHz 8c
  • Intel® Xeon E5-2670 v3 2.30GHz 12c
  • Intel® Xeon E5-2620 v3 2.40GHz 6c
  • Intel® Xeon E5-2630 v3 1.80GHz 8c
  • Intel® Xeon E5-2670 v3 2.30GHz 12c
  • Intel® Xeon E5-2620 v3 2.40GHz 6c
  • Intel® Xeon E5-2630 v3 1.80GHz 8c
  • Intel® Xeon E5-2670 v3 2.30GHz 12c
  • Intel® Xeon E5-2698 v3 2.30GHz 16c
Memory
  • 32GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 64GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 128GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 64GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 128GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 256GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 16GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 32GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 64GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 128GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 256GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 512GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 768GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
  • 1024GB (DDR4 RDIMM 2133MHz 1.2v 2Rank) )
Local Storage
  • 3 x 2000GB SATA Hard Disk (RAID 0/1/5)
  • 3 x 3000GB SATA Hard Disk (RAID 0/1/5)
  • 3 x 4000GB SATA Hard Disk (RAID 0/1/5)
  • 5 x 2000GB SATA Hard Disk (RAID 0/1/5/6/10)
  • 5 x 3000GB SATA Hard Disk (RAID 0/1/5/6/10)
  • 5 x 4000GB SATA Hard Disk (RAID 0/1/5/6/10)
  • 12 x 2000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 12 x 3000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 12 x 4000GB SATA Hard Disk (RAID 0/1/5/6/10/50)



REAR: Suports 2.5″ SSD, SATA or SAS Hard Disk Configurations:



2 x 240GB Solid State Disk

  • 5 x 900GB SAS Hard Disk (RAID 0/1/5/6/10)
  • 5 x 1800GB SATA Hard Disk (RAID 0/1/5/6/10)
  • 8 x 900GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 8 x 1800GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 25 x 900GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 25 x 1800GB SATA Hard Disk (RAID 0/1/5/6/10/50)



REAR: Suports 2.5″ SSD, SATA or SAS Hard Disk Configurations:



2 x 240GB Solid State Disk

  • 900GB SAS Hard Disk (RAID 0/1/5/6/10/50)
  • 1800GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 240GB Solid State Disk ((RAID 0/1/5/6/10/50)
  • 480GB Solid State Disk ((RAID 0/1/5/6/10/50)
  • 960GB Solid State Disk ((RAID 0/1/5/6/10/50)
  • 2000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 3000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 4000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 6000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
  • 2000GB SAS Hard Disk (RAID 0/1/5/6/10/50)
  • 3000GB SAS Hard Disk (RAID 0/1/5/6/10/50)
  • 4000GB SAS Hard Disk (RAID 0/1/5/6/10/50)



REAR: Suports 2.5″ SSD, SATA or SAS Hard Disk Configurations:



2 x 240GB Solid State Disk

RAID Supports RAID 0, 1, 10, 5, 50, 6, and 60 Supports RAID 0, 1, 10, 5, 50, 6, and 60 Supports RAID 0, 1, 10, 5, 50, 6, and 60
Network Ports 4 GbE ports (10GbE optional upon request) 4 GbE ports (10GbE optional upon request) 4 GbE ports (10GbE optional upon request)
Power Supply 1 x 750w Platinum Power Supply (dual optional)



110 V to 220 V AC

240 V to 380 V DC

-48 V DC

5°C to 45°C (41°F to 113°F)

Note: The ClearBOX 500 servers operating at 40°C do not support SSDs, and the fault of one fan may affect CPU performance

2 x 750w Platinum Power Supply



110 V to 220 V AC

240 V to 380 V DC

-48 V DC

5°C to 45°C (41°F to 113°F)

Note: The ClearBOX 500 servers operating at 40°C do not support SSDs, and the fault of one fan may affect CPU performance

1/2 x 750w Platinum Power Supply



110 V to 220 V AC

240 V to 380 V DC

-48 V DC

5°C to 45°C (41°F to 113°F)

Note: The ClearBOX 500 servers operating at 40°C do not support SSDs, and the fault of one fan may affect CPU performance

Operating System ClearOS 7 Business Silver ClearOS 7 Business Silver ClearOS 7 Business Silver
